DESCRIPTION:

The Guardian Enclosure Lift off Model is designed to provide robust protection for backflow preventers, ensuring safety and security in various environments. With a focus on durability and aesthetic appeal, this enclosure is suitable for both indoor and outdoor applications.

MATERIALS:

All hoops are 1 1/2” tubing, .90 wall 20’.

Body is 1/2” diamond shaped, #13 gauge expanded metal.

Hoop strap is Flat 1” x 1/8” 20”.

Rails is 1”x 1” x 1/8” Angle Iron 20’

Security plate is 1 1/2” x 3/16” flat 20’.

Wet Pins are 5/8” Round Rod.

POWDER COAT PROCESS:

Pre-Treatment:

Metal cleaned with alkaline cleaner Sandblasted and deburring for better powder coat processing.
Enclosures shall be preheated and coated by electrostatic application of 2.0 to 3.5 mil thickness on all surfaces.
Powder Coat shall be GN 03 (Forest Green) and BG 16
Beige (Desert Tan), or approved equal impact Resistant Finish.
Gloss finish.
Adhesion to be rated excellent when tested to ASTM D-3359 Standard.

FEATURES:

Flush, rounded edge design to keep pedestrians safe from injury.

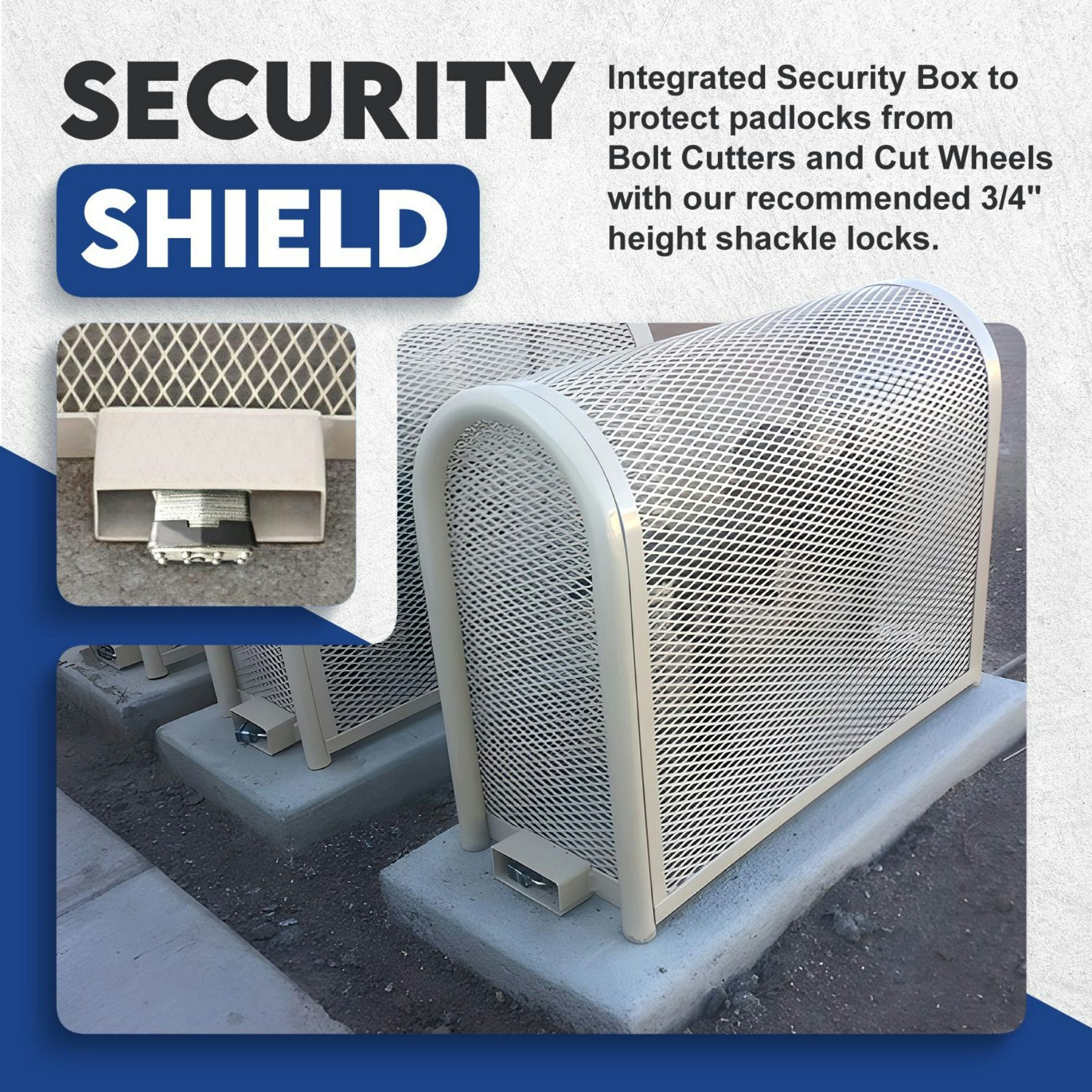

Integrated Security Box to protect padlocks from Bolt
Cutters and Cut Wheels.
Environmentally responsible materials.

Download Spec Sheet

Weight	45 lbs
Dimensions	36 × 25 × 14 in
Color	Desert Tan, Forest Green

Backflow Cage – GE-2(Lift off)-Tan
